Equipment




The Titan Gem-Maker
Big, fast, efficient, the workhorse of grinders with a full set of 8" diamond wheels. THE TITAN COMES COMPLETE. Includes 3/4 HP, 115/230V
industrially rated motor on 16" x 42" laminated baseboard, double pump
Spra-Mist coolant system, cast aluminum quick-change hoods and pans,
one 80 grit and one 220 grit 7-5/8" x 11/2" Galaxy metal-bond diamond grinding
wheel, four 7-5/8" x 2" Nova resin-bond diamond sanding and polishing
wheels (one each 280, 600, 1200 and 3,000 grit); one 24" flex stem lamp,
one 5-1/2" 14,000 grit Diamond Nova Disc, special disc geyser for laps, cab
rest, set of two splash guards, sample bottle Water Aid, and a manual. We
also include SAFETY GOGGLES WHICH MUST BE WORN WHEN
OPERATING THIS MACHINE. Note: Titan comes with two mounting buttons to
allow you to move lamp from right to left or add a second lamp or magnifier—
see page 10 to order.
100-T-100 Titan............... 115/230V, 60Hz........Shp.Wt. 151 lbs. ............ 3740.00
100-T-100X Export Model......230V, 50Hz........Shp.Wt. 151 lbs. ............ 4040.00
Shipped via UPS in 2 cartons. One weighs 94 lbs. and one weighs 57 lbs.
Export Model:

Put fun and pride into your
lapidary hobby or profession—
get the right tools for the job

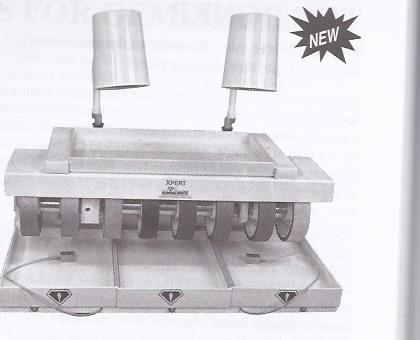

The Xpert Grinder/Polisher - 500-XP-100 $2690.00 Export Model $2800.00
This unit has 6 inch wheels. (Other grit sequences avaiable on custom order).

Export Model:


GENIE—THE “MAGICAL” GEM-MAKER
GENIE COMES COMPLETE: It’s powered by a 1/4 HP heavy duty, industrially
rated custom Baldor motor. Standard motor is 115 volt/60 HZ. Overseas model
uses similar motor in 230 volt/50 HZ. Comes mounted on a 13- 1/2" x 27" laminated
base board. Genie includes two 6" x 11/2" Galaxy diamond grinding wheels
(80 and 220 grit), four 6" x 11/2" Nova sanding and polishing wheels (280, 600,
1200 and 3,000 grits), one 18" lamp, with two mounting buttons (to allow you
to move it from left to right or add a second lamp or magnifier—see page 10),
Spra-Mist coolant system, cab rest, one 5-1/2" 14,000 grit Diamond Nova Disc,
sample bottle Water Aid, four splash guards, and a manual. We also include Safety
Goggles WHICH MUST BE WORN WHEN OPERATING THIS MACHINE.
100-GD-100 Genie.................115 volts, 60Hz motor....Shp. Wt. 56 lbs... 2225.00
100-GD-100X Export Model...230 volts, 50Hz motor ...Shp. Wt. 56 lbs... 2325.00
Export Model:

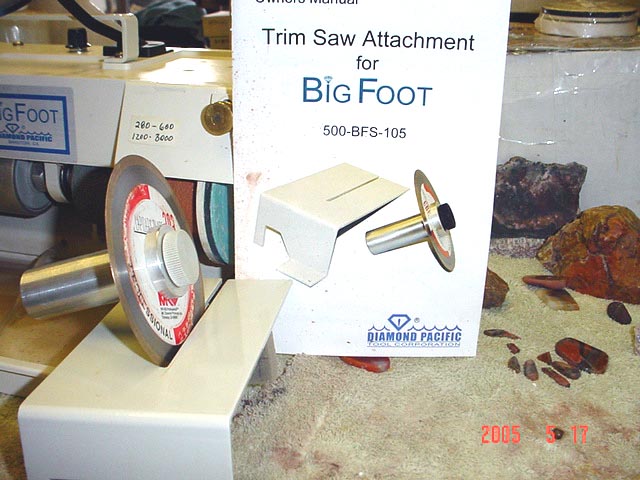

TRIM SAW ATTACHMENT FOR THE GENIE
Turn your Genie into a handy 8" trim saw in a matter of minutes. Easy installation—uses no oil.
TRIM SAW ATTACHMENT: Comes with
molded, durable plastic hood and pan, sintered
continuous thin rim blade, size 8" x .032 x 1”
bore, shaft adapter, angle block, sample bottle
of Water Aid, splash guard, and SAFETY
GOGGLES THAT MUST BE WORN WHEN
OPERATING THIS TRIM SAW.
100-TSG-105 Trim Saw............8lbs......380.00

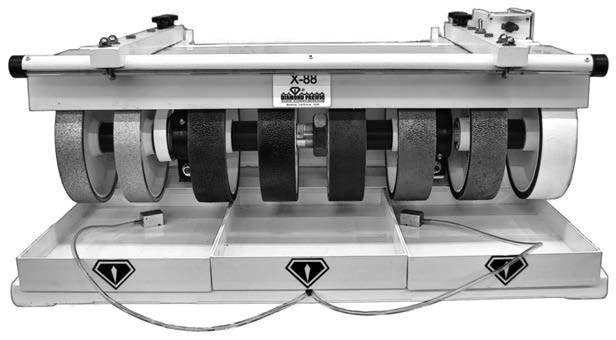

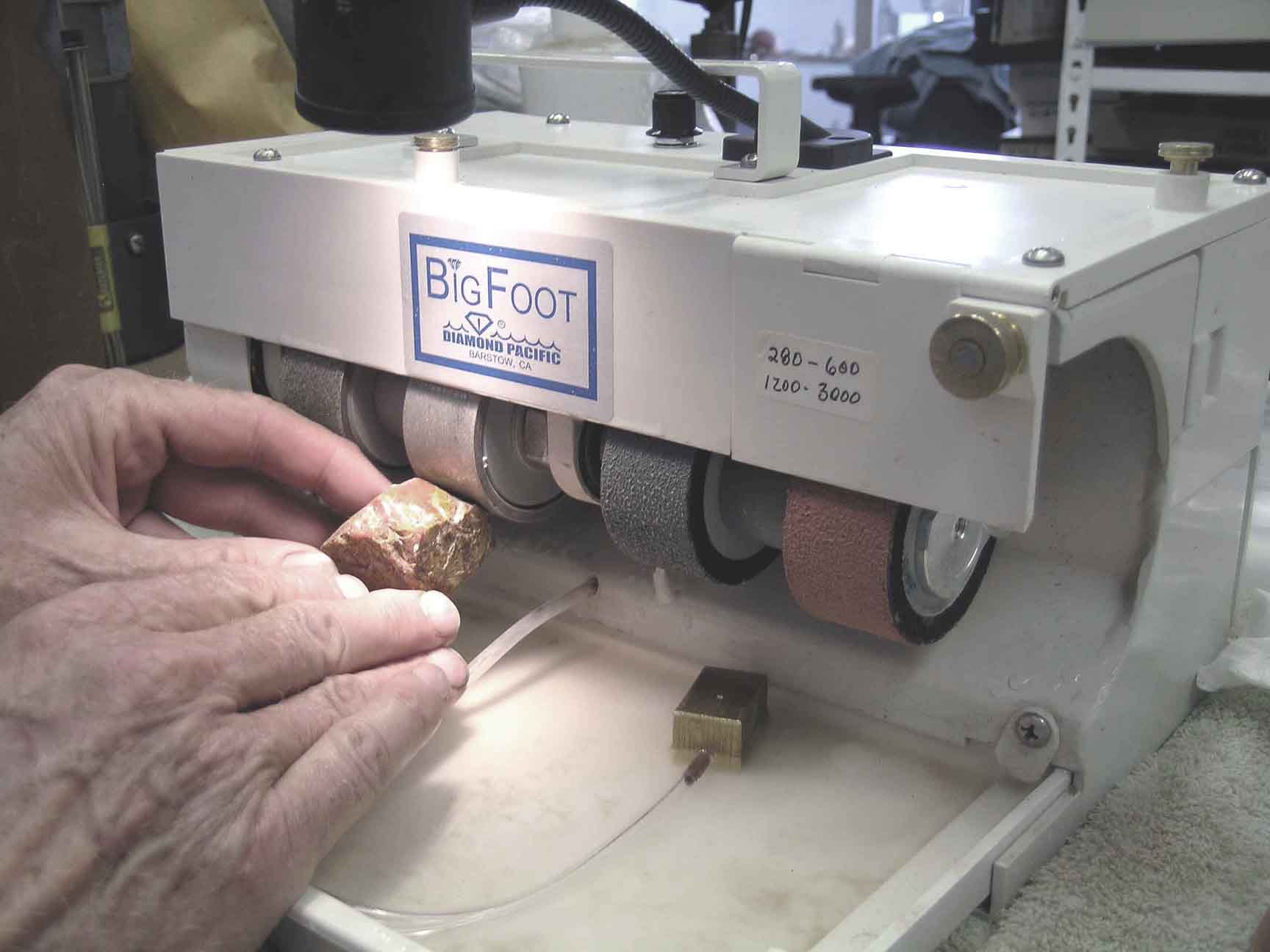

THE NEW X-88

This is basically the same machine supplied with 8” wheels right from the start! Both the 2016 version of the Xpert and the X-88 come complete with 8 wheels.When supplied with
the 6" wheels, it’s an Xpert. This makes possible the following very fast grit sequence which is now standard on the Xpert and X-88.
60 grit regular - (not Hex) Galaxy diamond wheel - for fast shaping.
120 grit Galaxy wheel - Removes scratches or start here on soft stones.
100 grit Nova diamond wheel - Fast scratch removal & prep for 280.
280 – 3000 Nova - four step well proven sequence.
Super Cerium Nova - Brilliant polish without residue or mess.
$3290.00
Export Model $3400.00
(Other grit sequences avaiable on custom order).
Export Model:

SOLD! GRYPHON WIRE RING SAW
The Gryphon Zephyr+ Diamond Ring Saw lets you cut in any direction, and operation is very smooth and quiet. My wife used this saw one time only with Dichroic Glass before switching to Wire Wrapping.
Item #: GRS001
Size: 17.5" X 17.5" table
Weight: 19 lbs.
Price: $350.00 plus shipping.


Manual Stone Crusher
This handy tool will pulverise your stone to fill cracks and holes when mixed with Opticon 224.
Item #: MSC001
Size: 9.5 x 4 x 4.5 inches
Weight: 5.25 lbs.
Price: $39.95
Another View

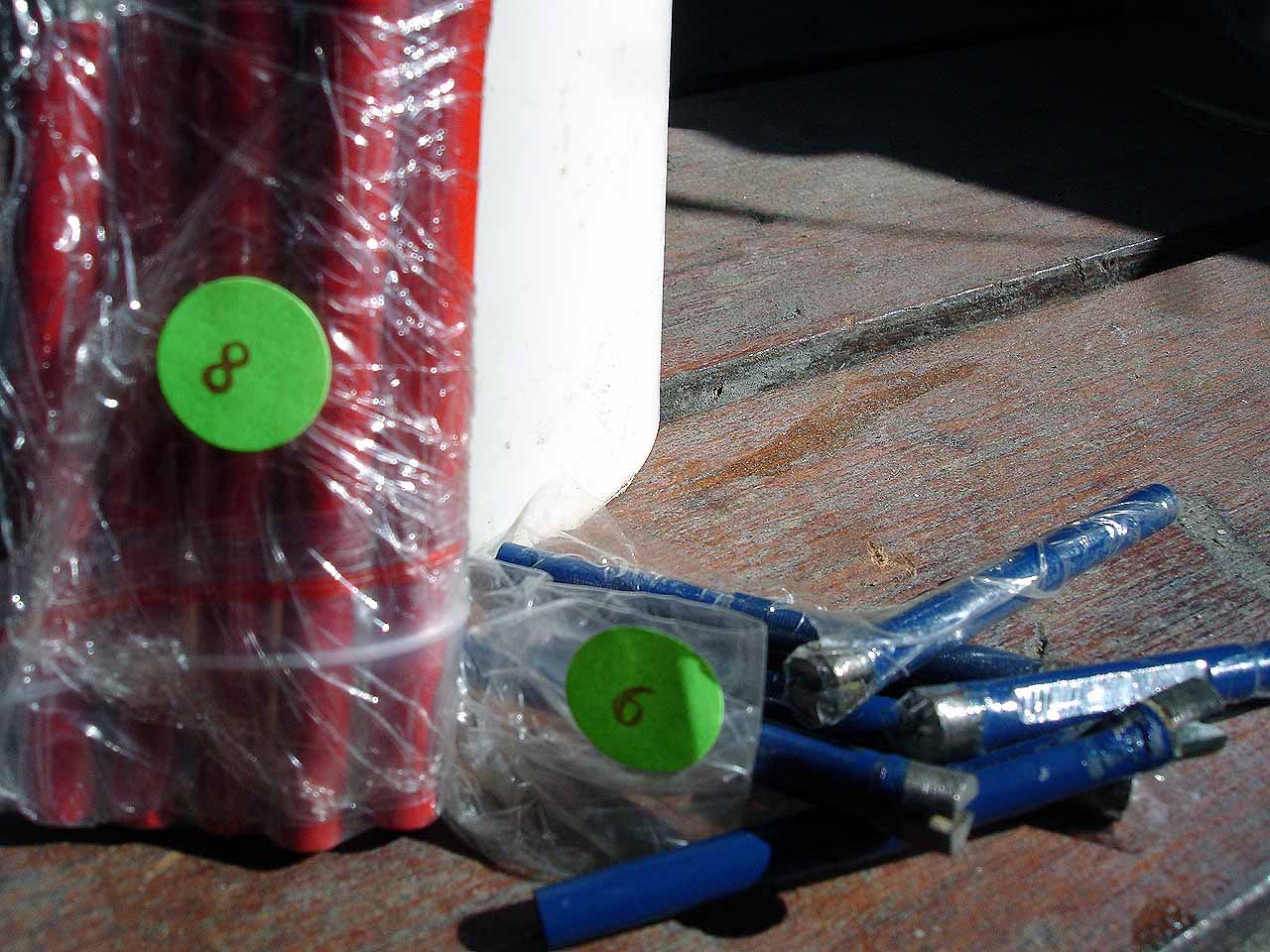

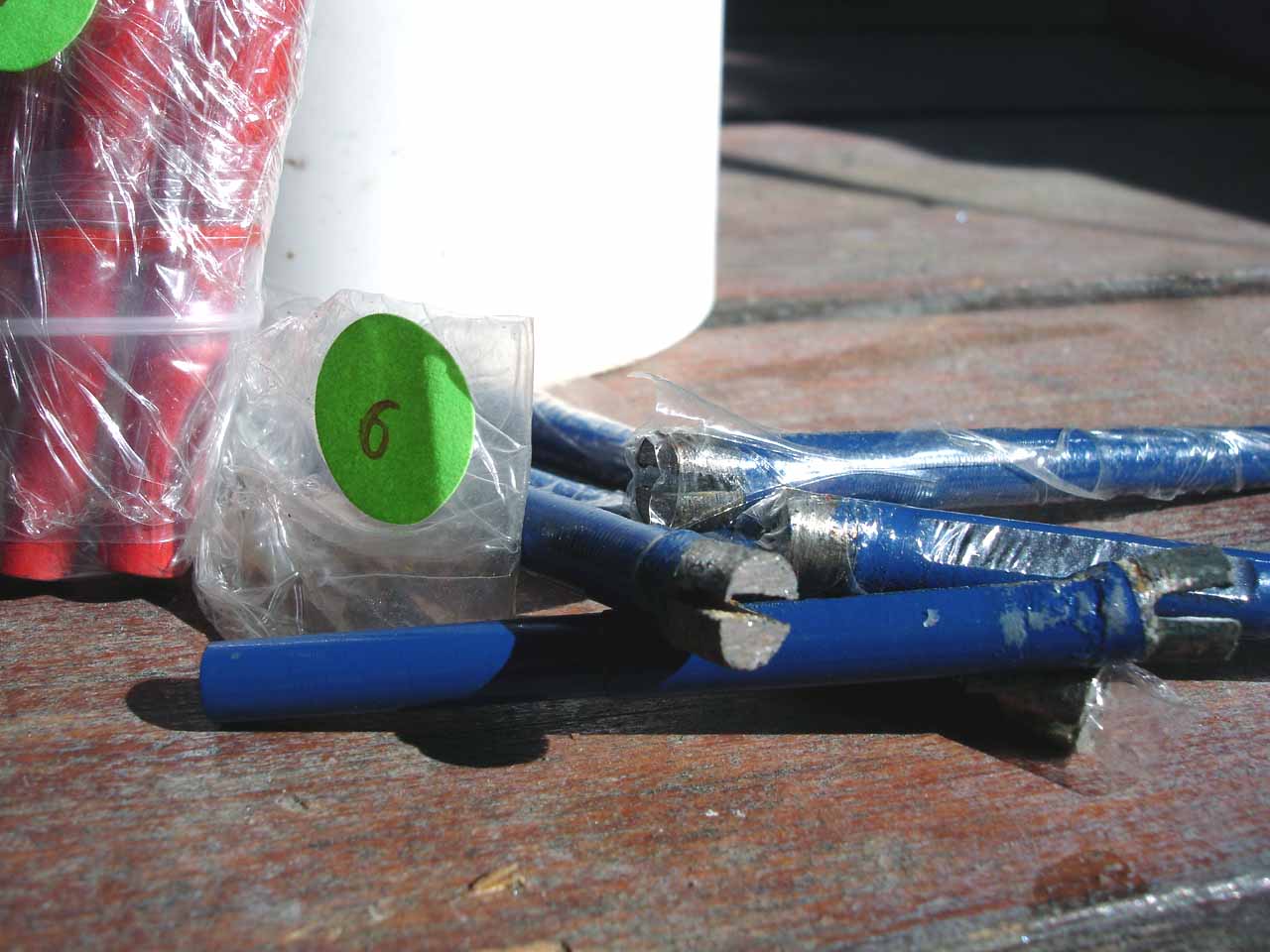

Diamond Core Bits
Diamond rim brazed core bits
Diameter: 6mm
Shank: 5mm
GDW: 10gm
View another image
Item #: DCB01
Weight: 0.3 oz.
Size: 6 mm
Price: $7.50 ea.

Diameter:8mm
Shank: 7mm
GDW: 18g
Item #: DCB02
Weight: 0.5 oz.
Size: 8mm
Price: $9.50 ea.


SPINDLE VELCRO BACKER PAD ADAPTER
Adapts to a 1/2 inch motor shaft. Diamond Pads are separate.
Item #: SBPA001
Weight: 8.4 oz. ea. (1.55 lbs./set)
Size: 1/2 in. spindle/3 inch Backers
Price: $59.95 for 3 w/Velcro Backers


Temporarily Out of Stock

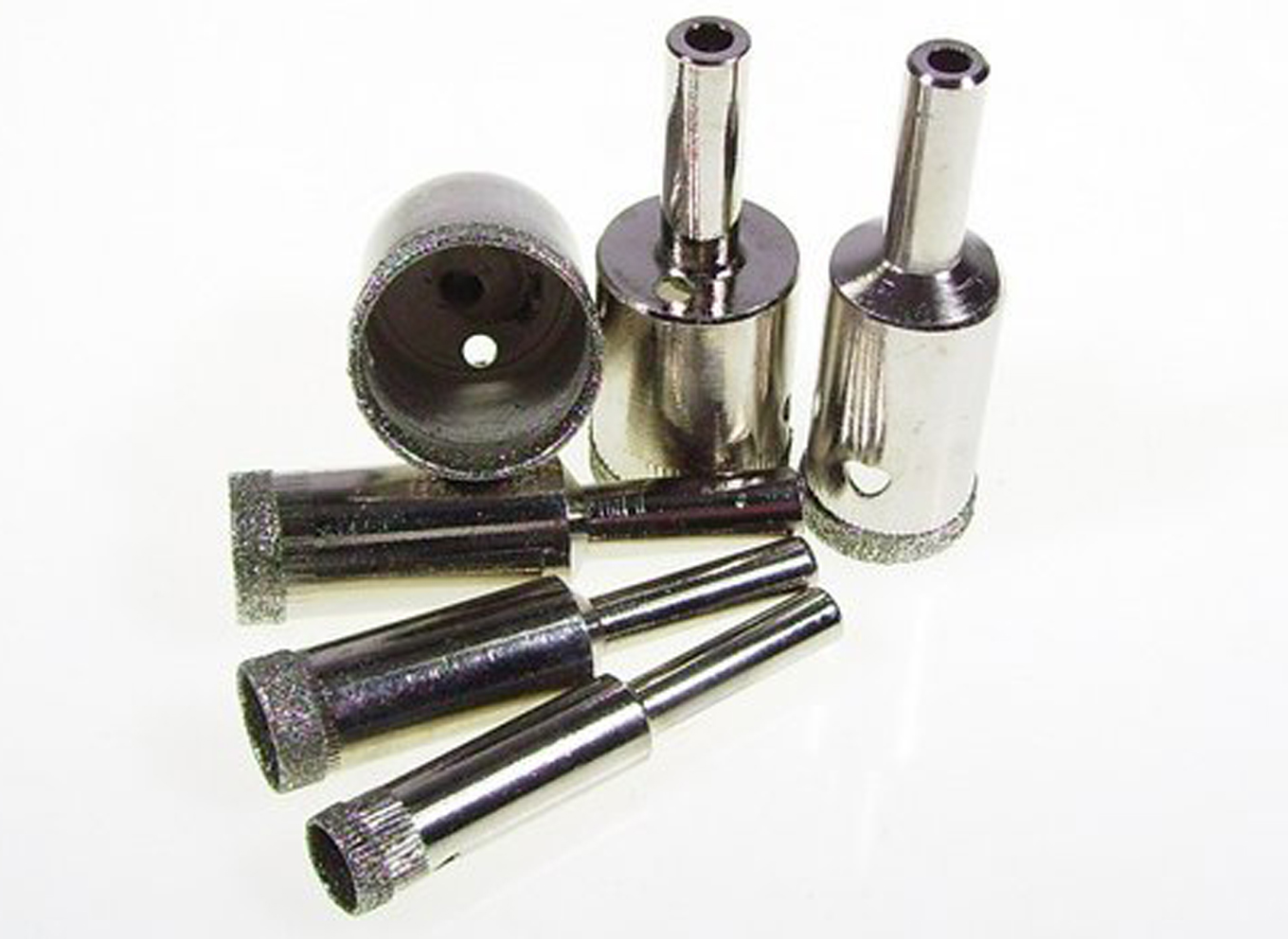

Diamond Core Bit Set
Item #: DCBS01
Weight: 3.7 oz.
Size: 10, 13, 16, 19, 22 & 32mm
Price: $30.00


VELCRO BACKER PAD ADAPTER
Adapts to a 3/4 inch pipe thread spindle. Diamond Pads are separate.
Item #: VBPA001
Weight: 9.4 oz. ea. (1.76 lbs./set)
Size: 3/4 in. spindle/3 inch Backers
Price: $49.50 for 3 w/ Velcro Backers

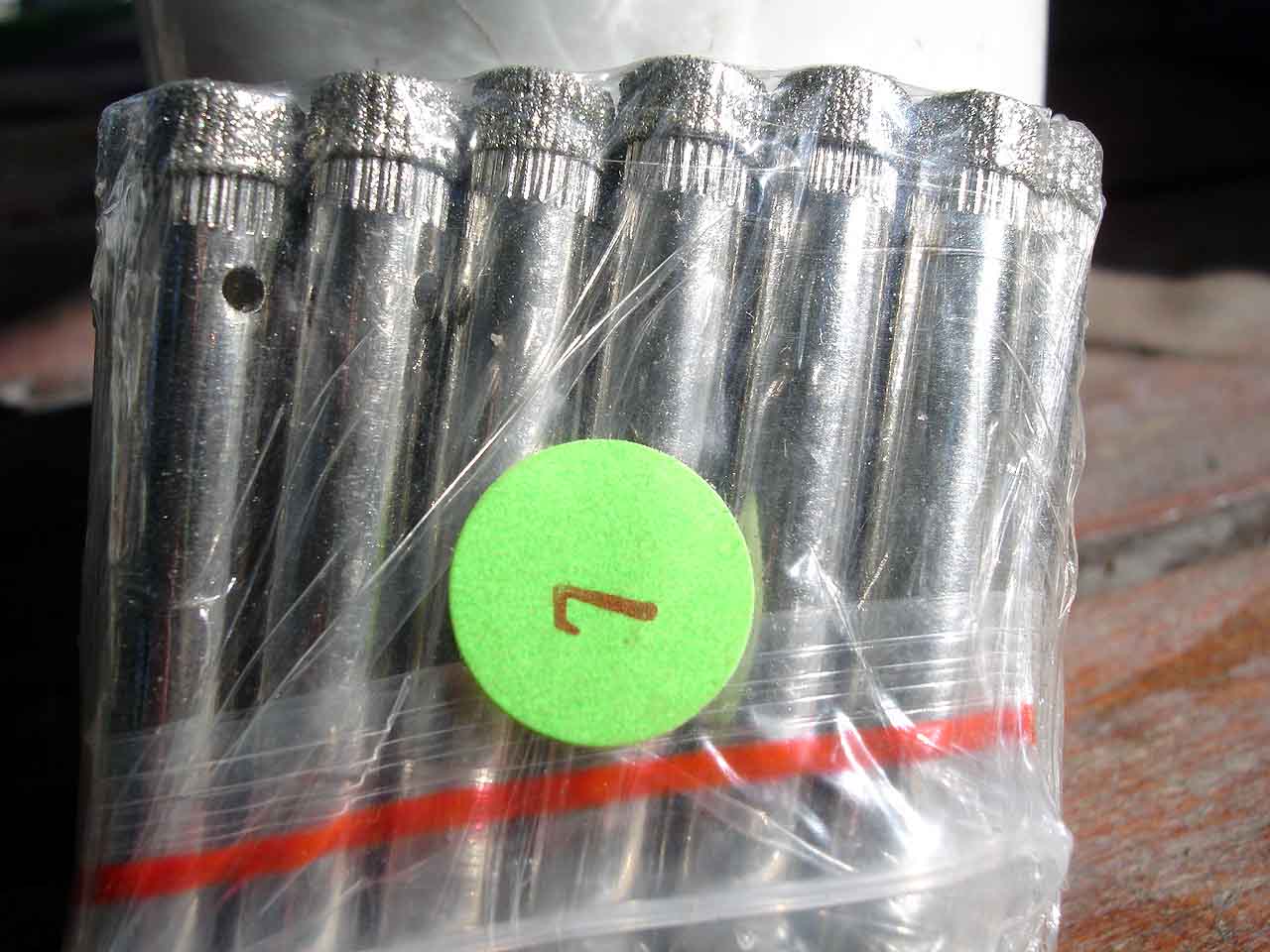

Diamond Coated Drill Bits
10 pieces Coated - not brazed
Diameter: 7mm
Total length: 58mm, 2-1/4"
Shank: 6mm
GDW: 65g
Item #: DCBS02
Weight: 2.4 oz.
Size: 7 mm ea.
Price: $12.50 for 10



VELCRO BACKER PAD ADAPTER Adapts to a 1 inch pipe thread spindle. Diamond Pads are separate.
Item #: VBPA002
Weight: 11 oz. ea. (2.06 lbs/set)
Size: 1 in. spindle/4 inch Backers
Price: $59.50 for 3 w/Velcro Backers


Just to be clear; Backer pads must be Milled out in the center and Diamond Pads must be split from the center hole down to the second ring of diamond to work on a sphere machine. Tell me in the checkout "instructions to seller" box if you do not want them modified.

VELCRO BACKER PAD
Use with the Barranca Wet Grinder (Replacement for worn out original in 5/8-11 thread). Available in 16mm metric thread for Non-USA grinders.
View Larger Image
Item #: VBP001
Weight: 3.7 oz.
Size: 4 inches x 5/8 -11 Threads Per Inch
Price: $6.95

VELCRO BACKER PAD
Item #: VBP001-16
Weight: 3.7 oz.
Size: 4 inches x 16mm metric thread
Price: $6.95


VELCRO BACKER PAD
Not for use with the Barranca Wet Grinder - 16mm metric thread.
Item #:VRBP002
Weight: 2.7 oz.
Size: 3 inches
Price: $5.95

VELCRO BACKER PAD

5/8 - 11 thread.
Item #:VRBP003
Weight: 2.7 oz.
Size: 3 inches
Price: $5.95


These pads must be modified for use on sphere
making machines by splitting them from the center
down to the second ring. Modified Backers such as VBPA001 or VBPA002 must also be used for
sphere polishing. Please advise if you do not
want them split or for use on a standard hand grinder.


FLEXIBLE DIAMOND PAD
Extra course grinding pad for the Barranca Wet Grinder. Made in China.
Another view
Item #: FDP050-4
Weight: 1.2 oz.
Size: 4 inches 50 Mesh
Price: $12.00


100 Mesh Item #: FDP100-4

200 Mesh Item #: FDP200-4

300 Mesh Item #: FDP300-4

500 Mesh Item #: FDP500-4

800 Mesh Item #: FDP800-4

1000 Mesh Item #: FDP1000-4

1500 Mesh Item #: FDP1500-4

2000 Mesh Item #: FDP2000-4

3000 Mesh Item #: FDP3000-4

8000 Mesh Item #: FDP8000-4

10000 Mesh Item #: FDP10000-4

15000 Mesh Item #: FDP15000-4

FLEXIBLE DIAMOND PAD
Extra course grinding pad. Made in China.
Item #: FDP050-3
Weight: .6 oz.
Size: 3 inches 50 Mesh
Price: $10.00


100 Mesh Item #: FDP100-3

200 Mesh Item #: FDP200-3

500 Mesh Item #: FDP500-3

1000 Mesh Item #: FDP1000-3

1500 Mesh Item #: FDP1500-3

2000 Mesh Item #: FDP2000-3

3000 Mesh Item #: FDP3000-3

8000 Mesh Item #: FDP8000-3

10000 Mesh Item #: FDP10000-3

15000 Mesh Item #: FDP15000-3



PLEASE NOTE THAT SHIPPING COSTS ARE
CALCULATED FOR DOMESTIC USA DELIVERY ONLY!
PLEASE REQUEST A QUOTE FOR SHIPMENT TO
A NON-USA ADDRESS! Thank you!

DIAMOND CUPS for Sphere Grinding, long lasting and renewable.These cups are made on plumbing Bell Jar reducer fittings and are standard pipe thread. We can deliver custom sizes and mesh. Call or e-mail with your requirements. Identify the size mesh ordered in the checkout message.
Yellow = 40/50 mesh
Blue = 50/60 mesh
Red = 140-170 mesh
Green = 220 mesh
White = 600 mesh
Item No.: DC01
Weight: 2.5 lbs.
Size: 2 x 3/4 inch
Price: $149.95 (Set of 3)


Diamond Sphere Cups
Item No.: DC002
Size: 1.5 x 3/4 Inch
Price: $119.95 (Set of 3)


Diamond Sphere Cups
Item No.: DC003
Size: 1.25 x 3/4 inch
Price: $99.95 (Set of 3)



Diamond Sphere Cups
Item No.: DC004
Size: 1 x 3/4 Inch
Price: $89.95 (Set of 3)






Diamond Sphere Cups
2.5 Inch Black Pipe. 50/60 mesh for hard stones.
View Larger Image
Item No.: DC005
Weight: 5.75 lbs.
Size: 2.5 X 1 inch
Price: $199.95 Set of 3
3/4 " bushing reducers included upon request.


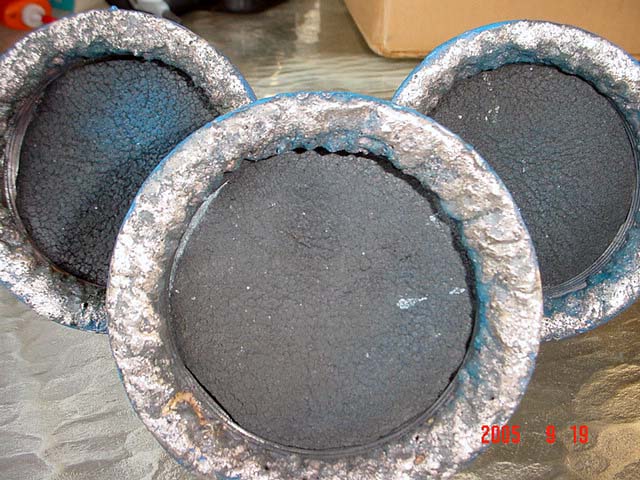

Diamond Sphere Cups
3 Inch ID Black Pipe. 50/60 mesh for hard stones. 4.25"OD
View Larger Image
Item No. DC006
Weight: 7.5 lbs.
Size: 3 X 1 inch
Price: $249.95 Set of 3
3/4 " bushing reducers included upon request.



Due to the increased cost of materials we've had to Increase the cost of the rods. We feel they are still a good value but if the cost of metal powders continues to rise that may change.
Here is what I have in stock:
30/40 mesh = 50
40/50 mesh = 11
50/60 mesh = 0
140/170 mesh = 31
150 mesh = 0
220 mesh = 10
600 mesh = 11
Last updated 02/01/2017
Use standard brazing techniques to make your own cups.
You'll make better spheres faster, cleaner and cheaper.
Course Mesh Diamond Brazing Rods
Braze your own diamond grinding cups on Bell Jar reducers for making spheres. Each rod weighs aprox. 1 oz and is 15 inches long.
Available in the following mesh sizes: 30/40, 40/50, 50/60, 140/170.
Pre-Brazed cups available in most standard pipe fitting sizes. Additional info available on request.
Identify the size mesh ordered in the checkout "Message to Seller" Box.


Item #: DR001 Course
Price: $18.50 ea. plus shipping.

Medium/Fine Diamond Brazing Rods
Braze your own diamond grinding cups on Bell Jar reducers for making spheres. Each rod weighs aprox. 1 oz and is 15 inches long.
Available in the following mesh sizes: 220, 600, Pre-Brazed cups available in most standard pipe fitting sizes. Additional info available on request. Identify the size mesh ordered in
the checkout "Message to Seller" Box.

Item #: DR002 Fine
Price: $18.50 ea. plus shipping.

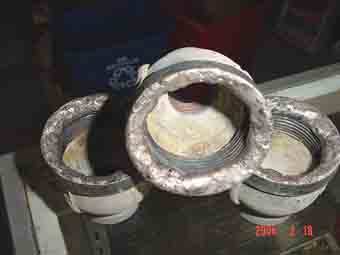

DIAMOND BRAZED CUPS - FAQ

1. I'm wondering about how many spheres can be ground before discarding or refreshing the diamond.
Answer: It depends! There are many variables to consider.
a. Hardness of the rocks
b. Size of the cups
c. Speed of cup rotation (I recommend between 120 and 200 RPM). I have used this motor with good results: DAYTON 6Z084 AC Gearmotor, 124 rpm, TENV, 115V
d. Tension on the cups
e. Mesh size and concentration of diamond in the matrix.
Experience so far has shown that in excess of 50 balls of varying sizes at a minimum can be ground before renewal of course diamond matrix is required using the diamond rods we sell. The fine mesh cups last much longer.


2. Can you apply more diamond as the original brazing wears away or do you have to toss the old brazed cups and replace them completely?
Answer: Once brazed, the cups can be renewed with new diamond practically forever. The second brazed will meld and blend with whatever is leftover from the first braze. The only thing you have to "toss" is the grindings in the drip pan under the cups. I recommend pre-heating your cups before brazing.

3.What diamond mesh size should I use as a roughing grade or should I use a medium grade to try it out first before going completely diamond?
Answer: The rods come in a variety of mesh sizes designed to meet standard lapidary techniques. Here is a list of popular sizes and their uses:
a. 30/40 mesh - Used for course(DR001) grinding of soft stones such as Marble, Onyx or Granite. Stones of 5 hardness (Mohs) or less. The reason is that the harder stones will crack and break the diamond bits out of the matrix. You must then re-sharpen the cup using loose grit to expose more diamond.
b. 40/50 mesh - This is a good all around course(DR001) grind compromise between speed of cutting and longevity of the cups. Most Lapidary applications can use this mesh size.
c. 50/60 mesh - Used to course(DR001) grind harder agates and Petrified Wood. Provides good longevity of cups without excessive scoring of the stone. I've made about 70 spheres of varying sizes before re-brazing is required with this mesh size dependent on the rock hardness.
d. 140/170 mesh - Use as a medium smoothing step (DR001) `to remove scratches made by 30/40 mesh grinding if necessary. Use this size to work Jasper that tends to flake and chip. Not needed in most applications.
e. 220 mesh - Use as a medium smoothing step (DR002) to remove scratches made by course (40/50, 50/60) mesh grinding if necessary.
f. 600 mesh - This size will provide a semi-polish (pre-polish DR002) before preceding to the final polish. Most of the time I've been able to go directly from course grind to this mesh with great results. It's amazing how much slurry is produced by the 600 mesh cups rotating at 157 RPM. Be aware that the metal cups will scratch some stones.

4. I have my own torch and have some existing worn-in cups. Can they be brazed?
Answer: Yes! Standard brazing techniques are used to apply the rod to the steel cups. A word of CAUTION! Do not braze GALVANIZED cups without using the proper breathing (Carbon Filtered) mask. Galvanized cups heated with a torch produce toxic fumes. Try to remove as much of the galvanize as possible before heating.

5. Do the grinding cups need to be beveled inside?
Answer: The cups will perform better and are easier to adjust if beveled before brazing. I recommend a 22 degree angle about 5/16's of an inch wide inside the cup. You can simply pre-grind the cup using silicon carbide until you get the desired beveled surface. Otherwise, visit your local Mill Shop.

6. How well do I have to make the weld on the cup?
Answer: The weld doesn't have to be pretty or even smooth. The wear from the stone you are grinding will soon make the surface very smooth. It will take several spheres of various sizes to smooth out the weld from edge to edge. A deposit depth of at least 1/8th inch is recommended.

7. How do I tell when to renew the diamond braze?
Answer: When you see the steel cup surface breaking through the matrix it's time to re-braze the cup. In most cases the bottom inside will wear through first (Point of most wear). The cup will still grind on a larger sphere until you see the steel underneath breaking through.

8. My cups seem to have stopped cutting. What's wrong?
Answer: Just as in the case of a dull diamond saw blade, the cups will sometimes glaze over and new diamond needs to be exposed. Simply apply a few shakes of silicon carbide of the same mesh size as the cups to expose more (new) diamond. Once you see the slurry return after the S/C has washed away you have applied enough loose grit to sharpen the cups. This should not be necessary very often. Another effective way of getting the cups to cut once more is to put in a different sized ball. I've found that this helps keep the wear more even as well. Be aware that diamonds never wear out; they crack and break into little pieces and then fall out of the matrix material. If you see a lot of empty holes on your cup the diamonds have been shattered. This means you might be applying too much pressure on the cups.

9. How much water should I use on the sphere during grinding and polishing?
Answer: You need to keep a steady drip on the sphere during grinding to flush out the loose particles during the grinding phase. If the sphere is covered with slurry then you need to increase the drip just a bit. When polishing I start out with a light drip on the sphere using Velcro diamond pads and adapters (see above) or cut pieces inside of PVC pipe cups. After the spots are gone, I start with 200 or 300 mesh advancing to 500 , 1000, 1500 for about 20 minutes each step and then 3000. After a half hour the sphere should have a bright polish at 3000 mesh pads. You can go higher in mesh size but the result is sometimes hard to see any improvement in the shine. I''ve been experimenting with 8000 mesh pads and I like the results I'm getting.

10. How many rods will it take to braze my cups?
Answer: It depends on the cup size and depth of weld deposit. I generally put 1/8th inch deep welds on approximately 5/16th inch wide beveled cups which takes 1 rod per cup for 1 ¼ inch cups. It takes about 1.25 to 1.5 rods to braze each 2 inch cup but you can go a little thinner on the depth and stretch it out. The rods are 15 inches long for all mesh sizes. Please call (see the "About Us" tab on the Home Page) if you have more questions concerning the brazing process. The size I'm referring to is the pipe size number stamped on the reducer.

11. Why does the cup wear through in just one spot (usually near the bottom of the circle)?
Answer: Unless you grind several different size spheres over time the abrasive diamond matrix will be depleted in a single spot. A small sphere size relative to the cup size will wear on the inner part of the cup were as a larger sphere size will wear on the outer ring of the cup. Even though the matrix has worn through in a particular spot, the cup will still work on a different sized sphere.


Brazing Tips
Over time I’ve noticed some things using the brazing rods I’d like to pass on in hopes of helping the folks out there braze their own cups. First off, I have had varied success using the finer mesh sizes, as the diamonds tend to clump up and make a resulting braze on the cup ring that resembles cornbread. This is usually caused by having insuffient heat in the cup. The small size of the diamonds makes them want to stick together. I’ve found that this is also made worse by having the heat too hot from your torch. Also, if you heat one specific spot too long the diamonds appear to loose their coatings making the mixing of the diamonds with the melted matrix difficult as the diamond tend to float to the top. One way I’ve found to minimize this is to gently stir the melt with the end of my brazing rod as I go around the cup ring. The stirring action appears to make a more consistent mix on the cup ring by breaking up the little clumps. I’ve found that it is difficult to get the torch heat just right for a smooth braze surface on the very small mesh diamond rods. This has only been true with the finer mesh sizes as the larger diamonds blend very well with the hot, melted matrix. Too much heat and the diamonds explode into little shooting stars (a little bit of this is not a problem). If your cup isn’t hot enough when you start brazing the melt cools too quickly and makes for a very rough braze surface. I have had some success in improving the appearance of the finished braze by dipping the end of the hot rod into a can of Technical Borax flux powder (30 mesh). I only do this when it appears the diamonds are having trouble blending into the melt. I use a table top electric stove (Single element) to preheat my cups for about an hour before brazing.
Another problem I’ve encountered is a variation in the quality of the steel cups I’ve tried to braze. Some of them appear to have a component that interferes with the brazing process. I’ve noticed this problem on cups made in China more so than those made in Thailand. The problem presents itself with lots of holes in the matrix as if there is a gas emitting from the steel. Cups should be clean and totally clean from oil or grease before brazing them. I use a Craftsman 5415 D-1 Acetylene and Oxygen torch and a neutral flame on my cup.

Neutral Flame


Click on the following line to see..

A movie of my polishing technique!(4 Mb)
The above link shows 3 inch Velcro Backer pads adapted to use the 3" diamond velcro pads that I import from China. I have found that a superior polish is attained using this system and the pads are easily changed since they are velcro attached. The process is quicker, cleaner and I use very little Opticon these days. Please contact me if you want additional information via the e-mail link below..
A movie of my sphere machine! (huge 3mb)


News

Orcutt Mineral Society
Annual Gem Show --
August 4th- 6th 2017
Location:
Nipomo High School
525 N. Thompson Rd.
Nipomo, CA 93444



Copyright © 2001-2004, C & G Gemcrafts.  All rights reserved.

Home Instructions Contact Store
